Versatile and cost-effective tie-down for a variety of connections commonly found on any residential construction
USES
The “Z” Nail is a cost effective means of holding down purlins to rafters, rafter and joists to plates, joists to beams, etc.
“U” Nails are used where the angle of the “Z” nail is not required, often used to join piles to bearers.
FEATURES
SIMPLE: The “Z” Nail is a cost-effective means of holding down purlins to rafters, rafter and joists to plates, joists to beams, etc.
FAST: “Z” Nails are self-nailing and easy to apply with the 85° angle of the nail to the shaft enabling the nails to draw the timbers to each other. Install using a standard carpenter hammer only.
DURABLE: Made from 5mm diameter Zinc Galvanised or Grade 304 Stainless steel.
INSTALLATION
For application and design capacity information, refer to the Z and U Nail data sheet.
Z Nails
| Product Code | Size | Pack Quantity |
|---|---|---|
| MPZL | 100mm long/40mm over spikes (at 85° to leg) | 100 |
| MPZR | 100mm long/40mm over spikes (at 85° to leg) | 100 |
| MPZL/S (Stainless Steel) | 100mm long/40mm over spikes (at 85° to leg) | 100 |
| MPZR/S (Stainless Steel) | 100mm long/40mm over spikes (at 85° to leg) | 100 |

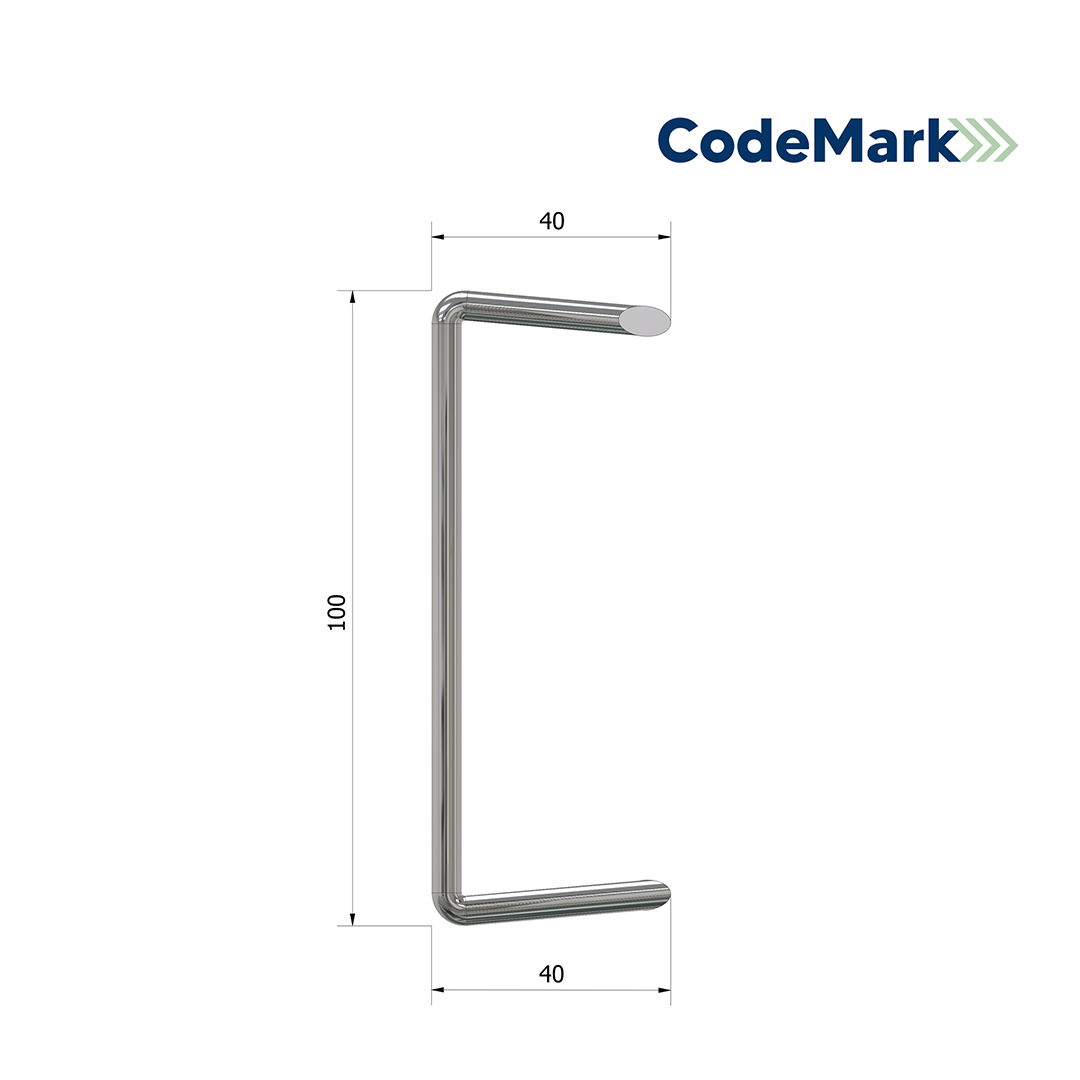

U Nails
| Product Code | Size | Pack Quantity |
|---|---|---|
| MPZU | 100mm long/40mm over spikes | 100 |
| MPZU/S (Stainless Steel) | 100mm long/40mm over spikes | 100 |
