6kN or 12kN Capacity fixing for sheet-braced wall panels
USES

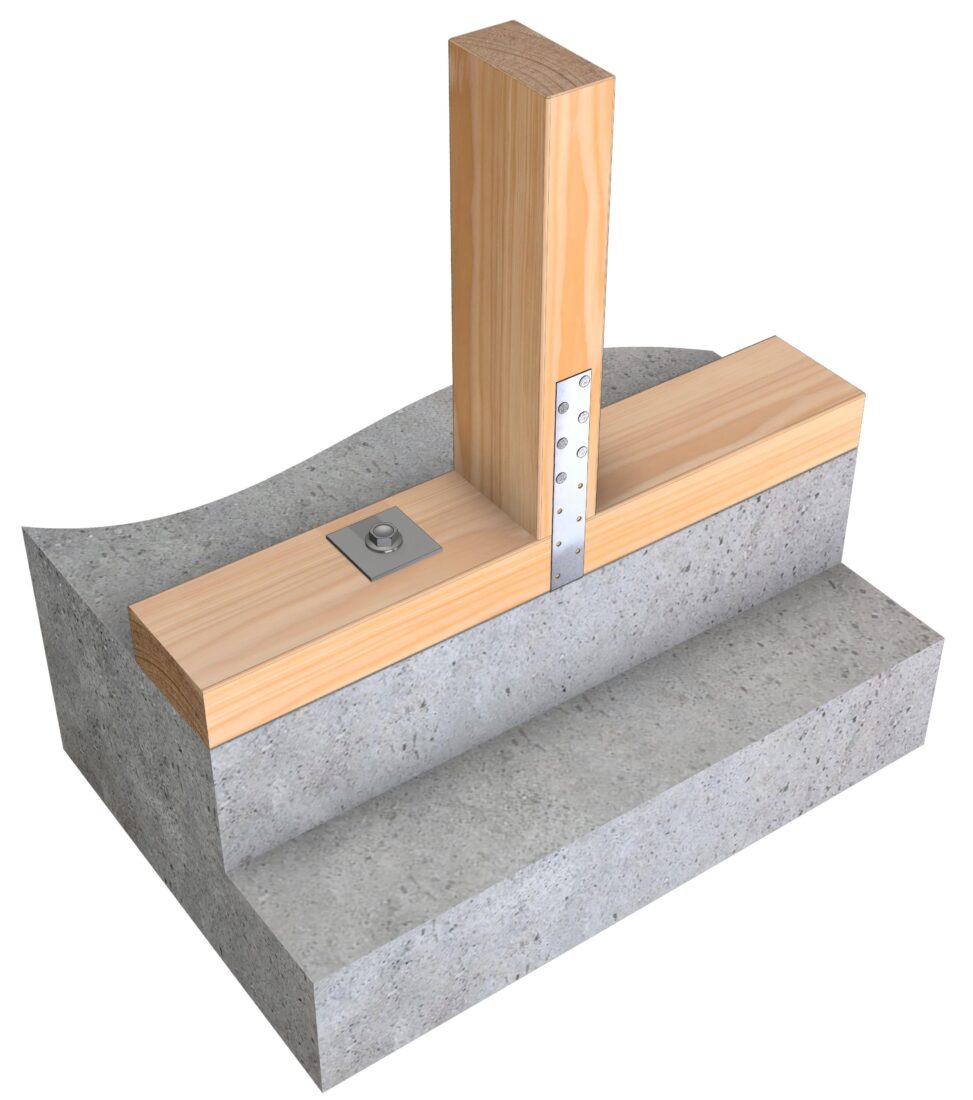

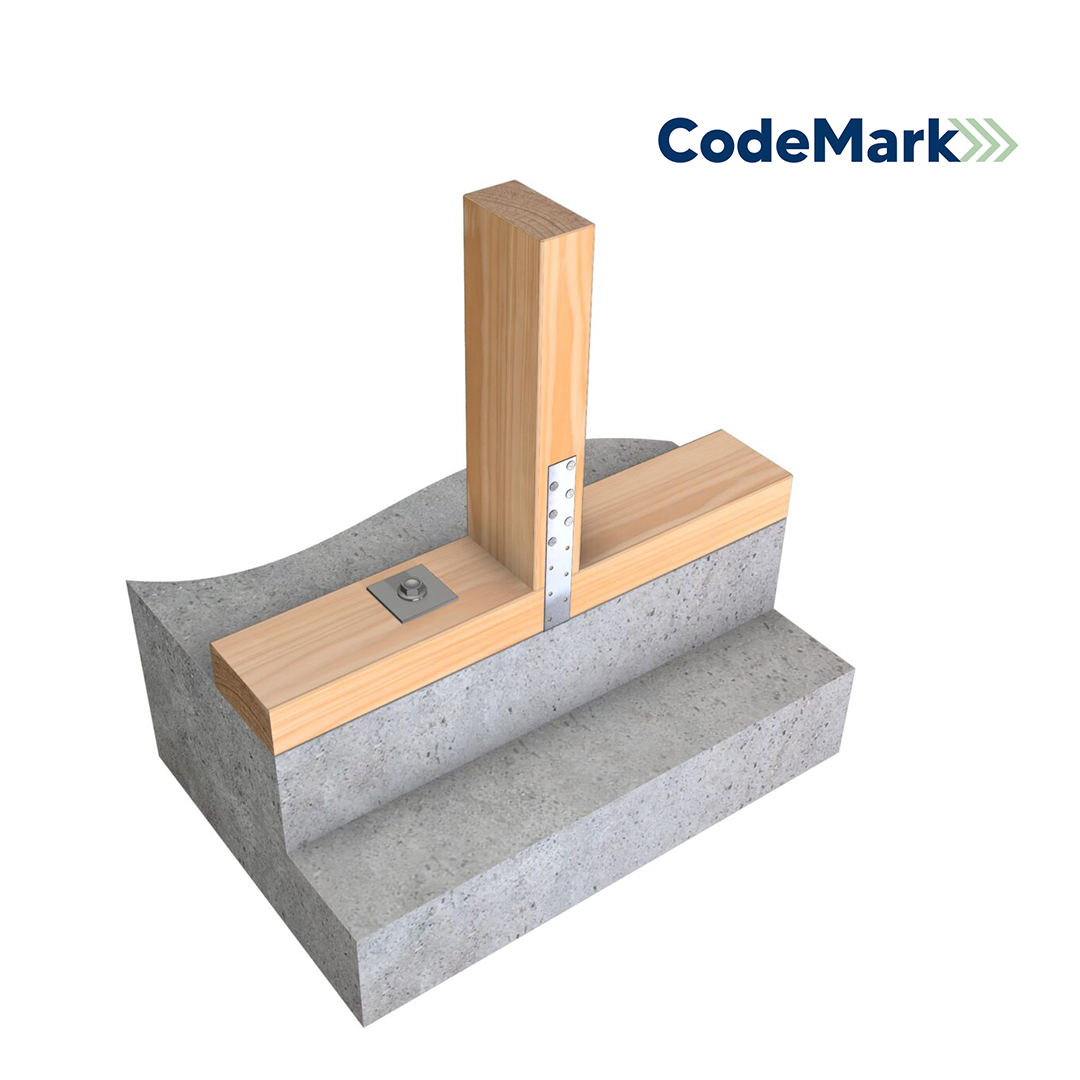

Versatile fixing primarily used to fix sheet braced wall panels to timber floors and concrete slabs (via bottom plate).
Can also be used for:
Other sheet braced wall connections
Joining rafters over walls/beams
Fixing lintels against uplift
FEATURES
SIMPLE: Multiple lengths to suit different applications.
FAST: Simply select the pre-cut lengths to best suit the application and hammer fix nails to the selected pre-punched holes.
DURABLE: Made from 1mm thick G300 Steel galvanised to Z275 or Stainless Steel 304.
INSTALLATION
For installation instructions for Wall, Roof and Floor Bracing, please refer to the Sheet Brace Straps Data Sheet.
Pryda Sheet Brace Straps
| Product Code | Size | Pack Quantity |
|---|---|---|
| SBS300 | 25 x 1.0 x 300mm | 50 |
| SBS400 | 25 x 1.0 x 400mm | 50 |
| SBS600 | 25 x 1.0 x 600mm | 50 |
| SBS300/S (Stainless Steel) | 25 x 1.0 x 300mm | 10 |
| SBS400/S (Stainless Steel) | 25 x 1.0 x 400mm | 10 |
| SBS600/S (Stainless Steel) | 25 x 1.0 x 600mm | 10 |
Pryda Sheet Brace Coils
| Product Code | Size | Pack Quantity |
|---|---|---|
| SBS30M | 25 x 1.0mm x 30m | 30m Coil |
