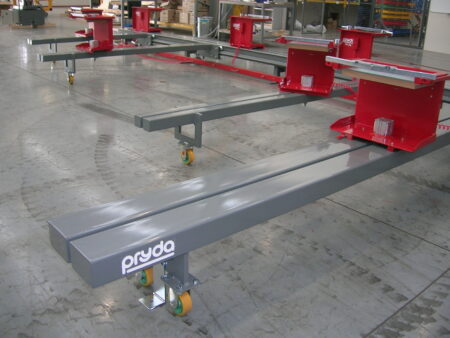

Can be used with any manual truss jigging system

Low profile floor rails

Can be easily installed or relocated

Basic concrete foundations required

PRYDA PORTAL GANTRY PRESS

The Pryda Portal Gantry Press is a proven design with simple operator controls. The unit’s
electrical controls allows the operator to smoothly control both the pressing and travelling
functions. Unlike other systems, the hydraulic drive system provides for infinite ramping of the
travel speed, whether it is for a small or long travel distance.

A quality hydraulic power pack forms an integral component of the portal “A” frame base rail,
ensuring servicing and observation is easy for operators and maintenance staff.

Its simple mechanical installation will allow for easy relocation, if required.

SPECIFICATIONS

Dimensions
Press capacity25 tonnes
Overall dimensions (std unit)– Width (overall)6750mm
– Width (A-frame)2540mm
– Height (overall)3750mm
Platen size– Width250mm
– Depth220mm
Platen (bottom) work height (std)700mm
Travel speedWalking pace
Rail track centres (std)6425mm
Weight (approx)1150kg
Installation requirements
Power415 volt, 3 phase, 15 amp, 4 wire
AirNil
FoundationLevel, sound concrete floor in both directions
