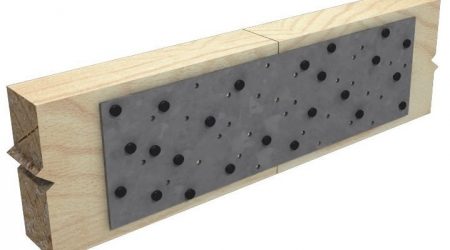

Nail-on Plates and Angle

A pre-punched plates for joining or connecting timber

USES

• Joining trusses on-site that have been made in parts in the factory
• Fixing trusses to poles
• Any heavy duty timber connection where a Knuckle nailplate will not suffice
• Joining beams
• Repair work over existing fixings

FEATURES

SIMPLE: Pre-punch holes ready for onsite application using nail fix or screw fix.
FAST: Simply select the correct plate size and type, place into position, and fasten through the pre-punched holes to suit design application.
DURABLE: Can be used for joining trusses on-site that have been made in parts in the factory. Fixing trusses to beams. Any heavy-duty timber connection where a Knuckle nail plate will not suffice. Joining beams. Repair work over existing fixings.

APPLICATION

For application and design capacity information, refer to the Nail-on Plates and Angle data sheet.

*This product is no longer available.

Pryda Nail-on Plates 1.0mm

Product Code	Size	Pack Quantity
NPA75/125	75 x 125mm	60
NPA75/190	75 x 190mm	40
NPA75/250	75 x 250mm	30
NPA75/315	75 x 315mm	25
NPA75/380	75 x 380mm	20
NPA100/190	100 x 190mm	28
NPA100/190SS (Stainless Steel)	100 X190mm	10
NPA100/315	100 x 315mm	17
NPA150/315	150 x 315mm	12

Pryda Nail-on Plates 2.0mm

Product Code	Size	Pack Quantity
NPB75/380	75 x 380mm	10

Pryda Nail-on Bars 1.0mm

Product Code	Size	Pack Quantity
NPA75BAR/S (Stainless Steel)*	75 x 1260mm	1
NPA100BAR/S (Stainless Steel)	100 x 1260mm	1
NPA150BAR/S (Stainless Steel)*	150 x 1260mm	1

*The product marked with * is no longer available.

Pryda Nail-on Bars 2.0mm

Product Code	Size	Pack Quantity
NPB75 BAR*	75 x 1260mm	1
NPB100 BAR	100 x 1260mm	1
NPB150 BAR*	150 x 1260mm	1

*The product marked with * is no longer available.

Pryda Nail on Angle 1.0mm

Product Code	Size	Pack Quantity
NPA	190 x 50 x 50mm	25
