Universal ties for joining timber at right angles
USES
NPD is commonly used for beam to beam connections whilst NPD150/63 is commonly used for subfloor connections and forms part of the pile bearer kit.
FEATURES
SIMPLE: Easy to use for right-angle connections.
FAST: Nail fix using on-site hammer.
VERSATILE: Can accommodate multiple timber width sizes.
APPLICATION
For application and design capacity information, refer to the Nail-on Diagonal Cleat data sheet.

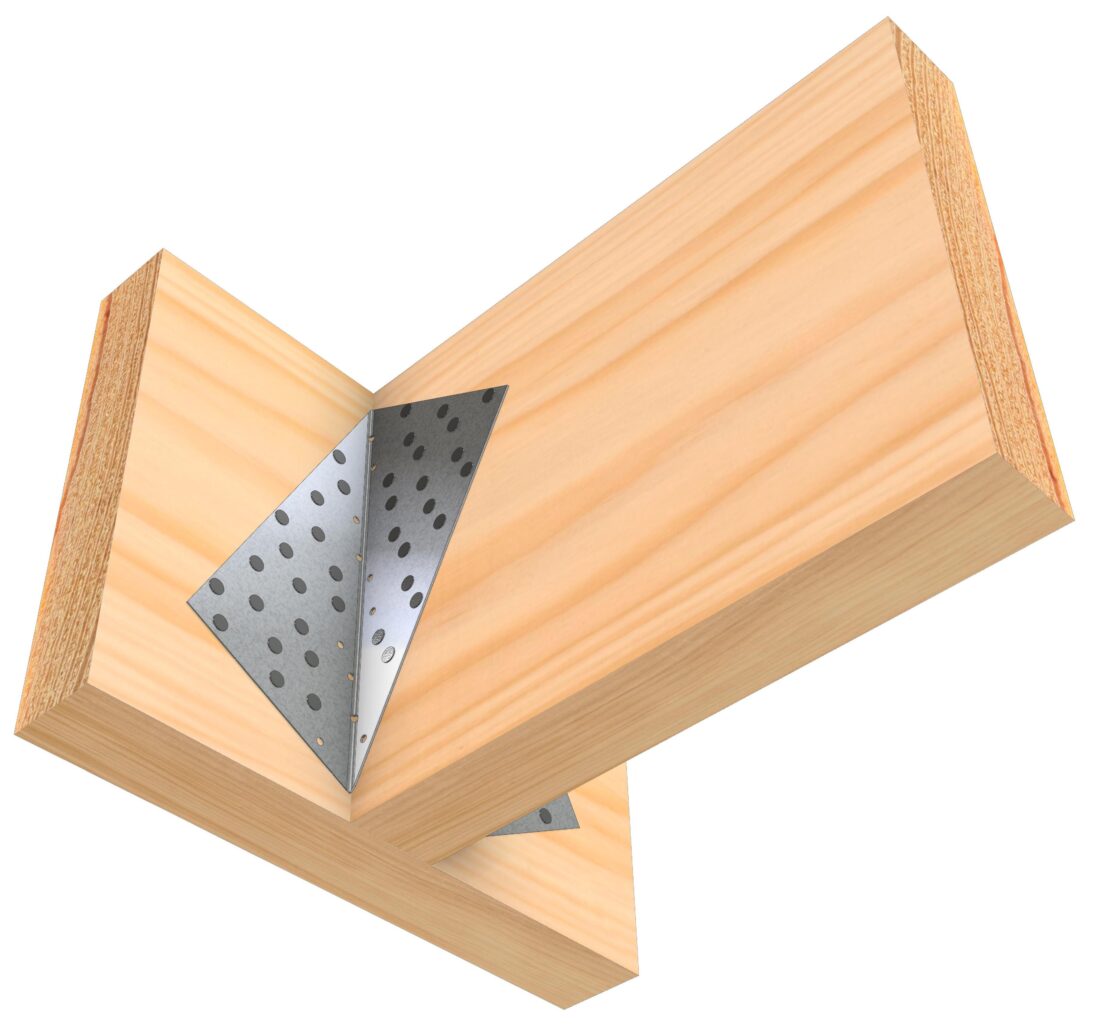

Nail-on Diagonal Cleat (Suitable for beam to beam connections)
| Product Code | Size | Pack Quantity |
|---|---|---|
| NPD | 215 x 90 x 1mm | 20 (10 Left Hand & 10 Right Hand) |
Nail-on Cleats (Suitable for subfloor fixing)
| Product Code | Size | Pack Quantity |
|---|---|---|
| NPD150/63/S (Stainless Steel) | 150 x 50 x 1mm | 20 (10 Left Hand & 10 Right Hand) |
